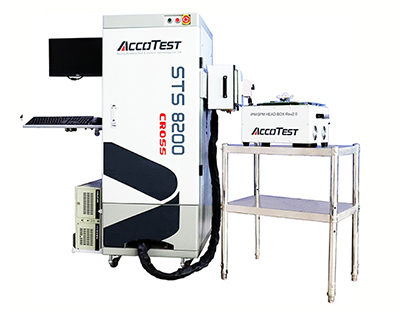

System Features:

-  IPM Test Kit based on STS8200

-  Test Specification: 2000V/100A DC, 200A Dynamic AC

-  Support Static and Dynamic Parameters Test

-  Programmable Dual-pulse and Multi-pulse

TRR/IRR/TRI/TFV/TON/TCON/EON/TFI/TRV/TOFF/TCOFF/EOFF, etc.

-  Short circuit current testing

ISC, TSC, etc.

-  Programmable over current protection

-  Support menu-driven programming

Download

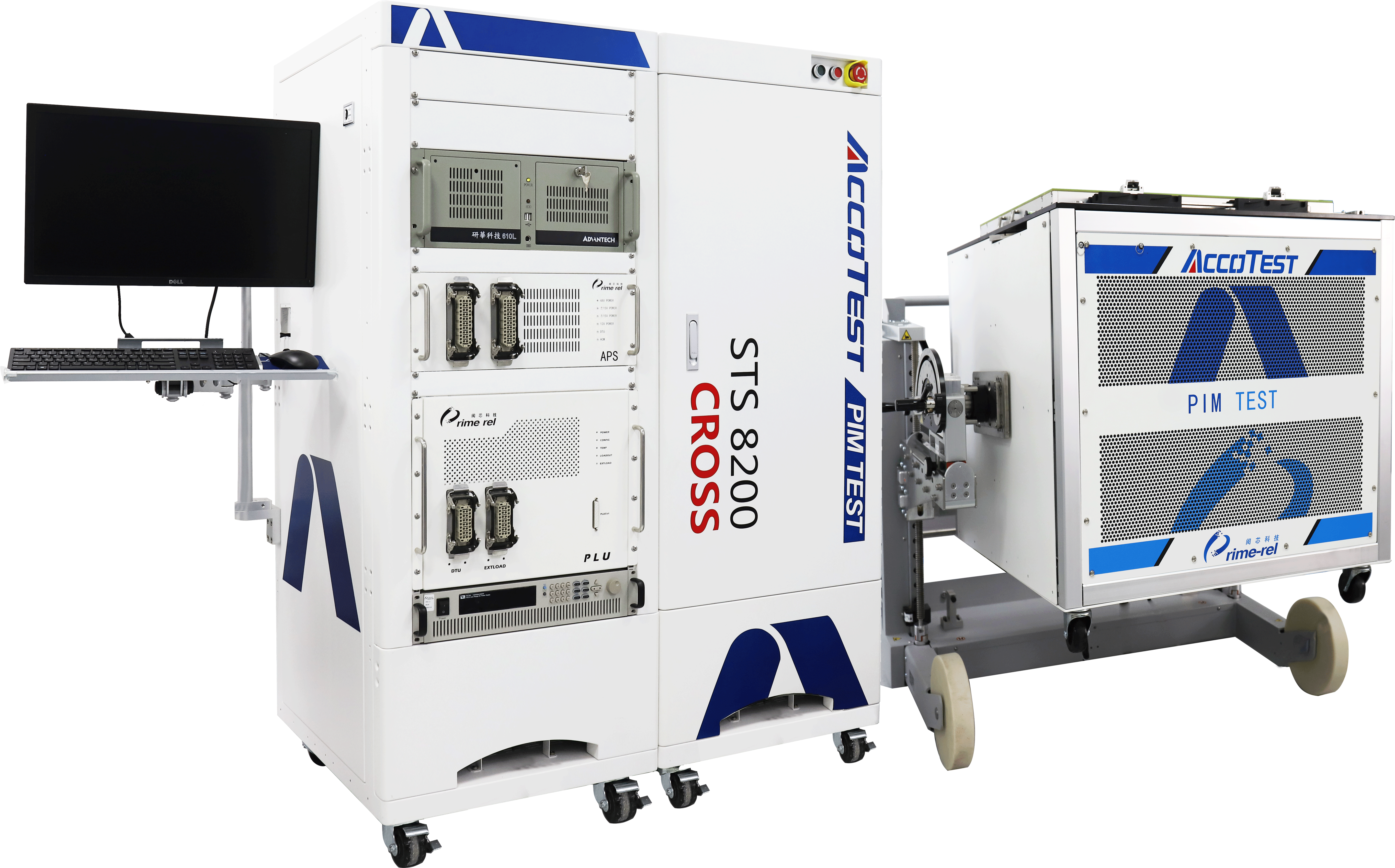

Key Features:

-   PIM Test Kit based on STS8200

-   Max Voltage and Current for Switching:

1200V/2000A (SW)

1200V/6000A (SC)

1200V/2000A (Qg, can be upgraded)

1200V/2000A (RBSOA, can be upgraded)

-   Max Voltage and Current for DC:  2000V/1000A

-   Low Stray Inductance

-   Multi-task and One Socket test

-   Target Device:

EV/HEV Modules

Power Integrated Modules

SPM/IPM
