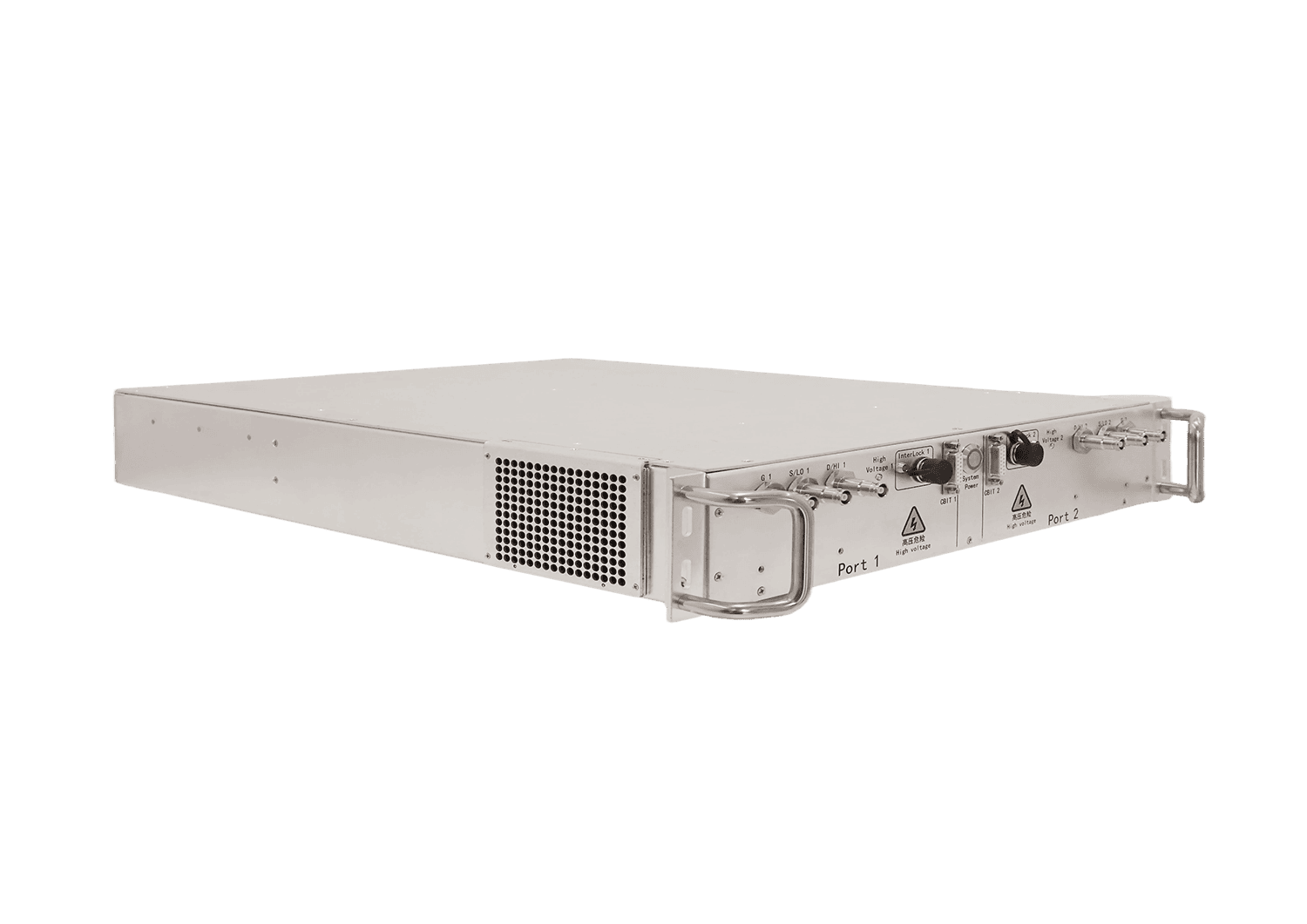

HVI2.0_PLUS
HVI2.0_PLUS
Analog and Power Discrete
Floating High Voltage VI Source Measure Module for STS8200
Key Features
- Full floating one channel VI SMU
- Four Quadrant Capability
- 10 Force/Measure Voltage Ranges:
- N10P4000V, N10P2000V, N10P1000V, N10P500V, N10P200V, P10N2000V, P10N1000V, P10N500V, P10N200V, 10V
- 4 Force/Measure Current Ranges:
- Per Board: ±60mA (pulse), ±40mA
- Per Channel: ±30mA (pulse), ±20mA, ±10mA, ±1mA, ±100uA, ±10uA (measure only), ±1uA (measure only)
- Independent per-pin real time data processing including Max., Min., AVG and Trigger Position
